Create the Slabs
using AutoCAD Architecture

The next step is to create and place two simple concrete slabs with thickness 0.20 m, one on the floor and the other one on the roof of the basement, using the tool Slab.

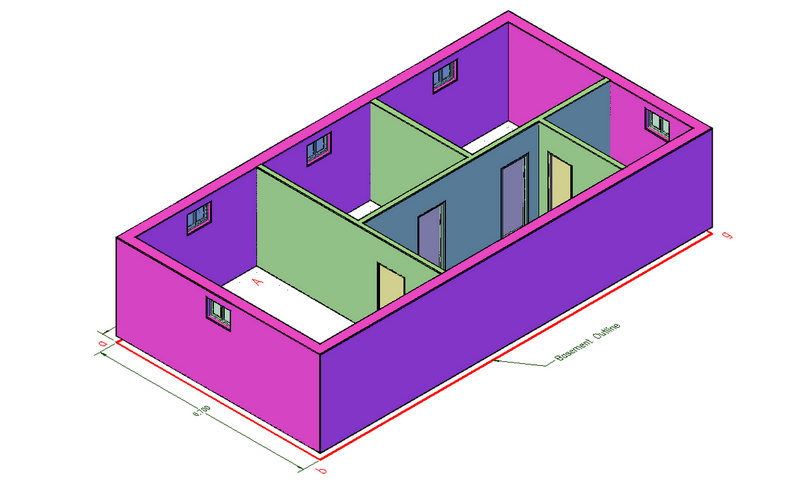

Open drawing Place the Windows-1, that you created in the previous tutorial, display it in 3DView and apply to this plan the Conceptual view, as shown in Fig.2.1.6.1.

With the tool Slab, you will use a closed polyline - the outline of the basement - to create a single slab that has the properties of the tool Slab you selected.
After you create this object, you can then change its properties.

Create the floor slab of the basement

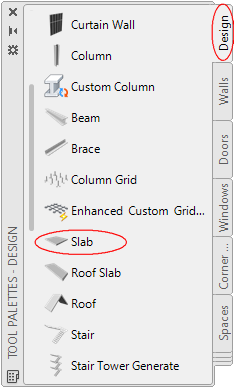

You can select the Slab tool on Ribbon > Home tab > Build panel > Roof Slab fly out menu (hover on ►) >select Slab, or for this example, you can select it from Tool palette - Design (Fig. 2.1.6.2).

• Locate or design the closed polyline (abgha), this is the outline of the basement, at level 0.00 (Fig.2.1.6.1).
• Open the Tool palettes- Design (Fig. 2.1.6.2) that contains the tool Slab - the slab you want to use - (you may have to scroll to display the desired tool).

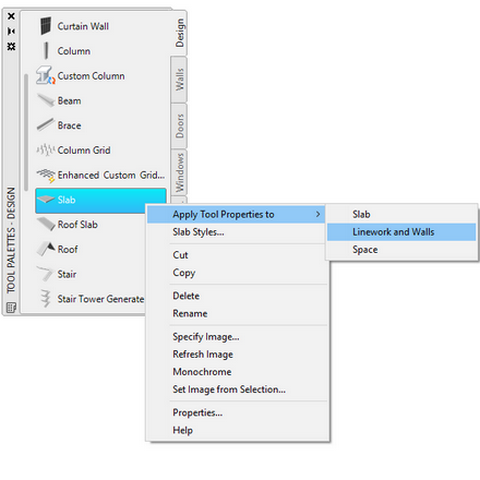

• Right click on the tool Slab, and click on Apply Tool Properties to ► Linework and Walls (Fig.2.1.6.3)
• Select the closed polyline (abgha), and press ENTER.
  It is possible to notice, that you can not select the polyline, because it overlaps with other objects. Use the Selection Cycling (status bar button), that controls the display behavior when you hover over or select an object that overlaps other objects.
  This button controls whether a badge or the Selection dialog box displays when you hover over or select an overlapping object. You can choose between overlapping objects by pressing Shift+Space or by using the Selection dialog box. Make sure that Selection Cycling is turned on.
  As you roll your cursor over objects, you will see an icon indicating that multiple objects are available for selection, from these objects select the  polyline.
• Press n (No) to keep the polyline in the drawing.
• For the Creation Mode: select p (Projected).
• For Specify Base Height: type the value 0.
• For the Specify Slab Justification: select Bottom.
• At the prompt Select the pivot edge of the slab: select line (ab) and press ENTER.

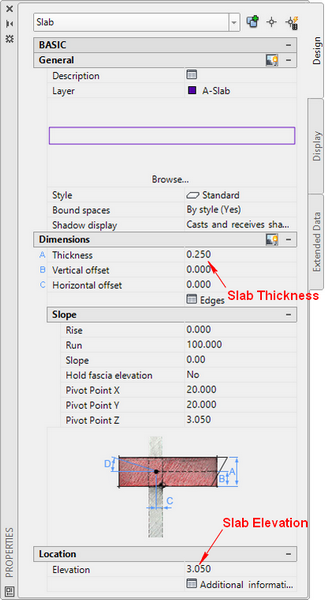

• At the Properties palette of the slab that will appear,on category Dimensions locate tab Thickness (Fig.2.1.6.4), change it's value to 0.20 (it is, in meters, the width of the basement floor slab), on category Location locate tab Elevation, change it's value to 0.20, and press Enter and Enter again.

• Before you continue, open the Layer Properties Manager, select layer A-Slab that is created automatically with object slab, click on it's color and set it to 21.  (The only reason for editing this layer's color for slab, is to distinguish visually the slabs from the walls and other objects, while it is at conceptual view).

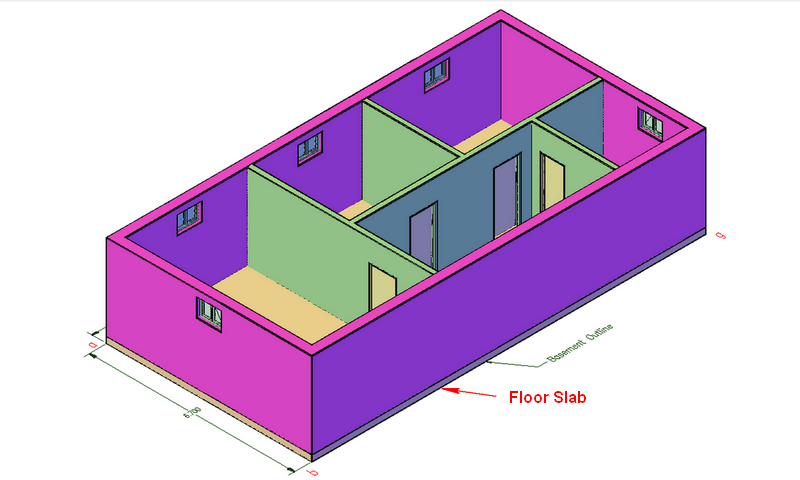

  The slab of the basement floor has been created as shown in Fig. 2.1.6.5.

Create the roof slab of the basement

• Locate or design the closed polyline (abgha), this is the outline of the basement, at level 0.00 (Fig.2.1.6.1).
• Open the Tool palettes- Design (Fig. 2.1.6.2) that contains the tool Slab - the slab you want to use - (you may have to scroll to display the desired tool).
• Right click on the tool Slab, and click on Apply Tool Properties to ► Linework and Walls (Fig.2.1.6.3)
• Select the closed polyline (abgha), and press ENTER.
• Press n (No) to keep the polyline in the drawing.
• For the Creation Mode: select p (Projected).
• For Specify Base Height: type the value 2.80.
• For the Specify Slab Justification: select Bottom.
• At the prompt Select the pivot edge of the slab: select line (ab) and press ENTER.
• At the Properties palette of the slab that will appear,on category Dimensions locate tab Thickness (Fig.2.1.6.4), change it's value to 0.20 (it is in meters, the Thickness of the basement floor slab), on category Location locate tab Elevation, change it's value to 3.20, and press Enter and Enter again.

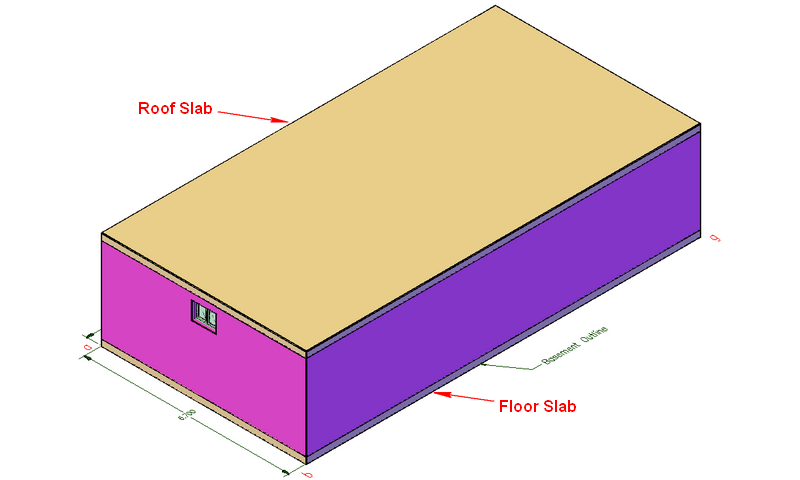

• The slab of the basement floor has been created as shown in Fig. 2.1.6.6.

Save the drawing under the name h21_slabs in the folder you have created earlier.
Its full path is: C:\ACA\tutorials\house21\h21_slabs.
